As industries become increasingly dependent on sensitive electrical equipment, maintaining high-quality and stable power supply has become more important than ever. Voltage fluctuations, harmonic distortion, voltage sags, swells, and power imbalance can lead to equipment failures, production interruptions, and significant economic losses.
The Unified Power Quality Conditioner (UPQC) has emerged as an advanced power quality management solution that integrates voltage compensation and current regulation functions into a single system. By combining the advantages of series and shunt compensation technologies, UPQC provides comprehensive protection for modern power networks and ensures a stable, efficient, and reliable electricity supply.

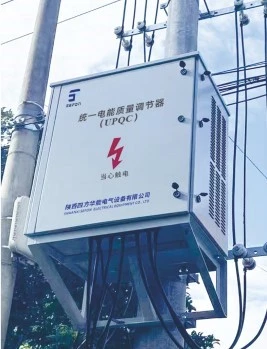

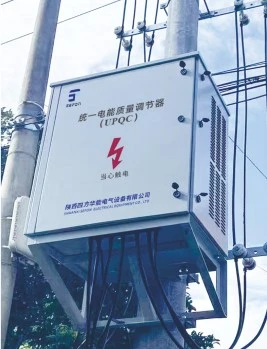

Overview of Unified Power Quality Conditioner(UPQC)
The Unified Power Quality Conditioner(UPQC) is a new type of power electronic device. Its core function is to address voltage quality issues in the power grid, such as voltage sags, swells, fluctuations, flickers and harmocis, as well as current quality problems such as current harmonics, reactive power and three-phase imbalance. This provides stable power supply for sensitive loads. It is widely used in industries with high power quality requirements, such as industrial manufacturing, data centers, renewable power generation and rail transit.
Working Principle
A unified power quality conditioner(UPQC) mainly consists of a shunt converter, series converter, bypass module, and control unit. Its operation is based on the coordinated control of series voltage compensation and shunt current compensation:
a) Shunt converter: Connected in parallel between the power grid and load. It filters harmonic currents generated by the load, compensates reactive power, and balances three-phase currents by outputting a compensating current with the same magnitude but opposite in phase to the load current.
b) Series converter: Connected in series between the power grid and load. It injects a compensating voltage with controllable magnitude and phase to mitigate voltage sags, swells, fluctuations, and similar issues.
c) Bypass module: Connected in parallel on the output side of the series converter. In the event of the fault, it closes rapidly to bypass the device and ensure uninterrupted power supply to the load.
d) Control unit: The detection unit collects real-time signals such as grid voltage, load voltage, grid current and load current. Through algorithmic processing, it generates control commands to coordinate the series and shunt converters for power quality conditioning.
Applications of unified power quality conditioner(uPQC)
The unified power quality conditioner(UPQC) is suitable for low-voltage distribution systems with a rated voltage of 400 V (three-phase four-wire) and a rated frequency of 50 Hz. It can adapt to differnet types of sensitive loads, such as precision processing equipment, medical intruments, sever clusters, automated production lines and EV charging stations.
Techinical Parameters
| Output capacity(kW) | 30kW | 60kW | 100kW | |
| Overall technical specifications | Wiring mode | Single-phase (L-N), PE | Three-phase (A, B, C-N), PE | |
| Input phase voltage range | 132V to 286V (Rated Voltage 220V, Compensation Range -40% to + 30%) | |||
| Input frequency | 47.5 Hz to 52.5 Hz | |||
| Output voltage accuracy |
≦ 1% |
|||
| Adjustable range of output voltage | 190V to 260V | |||
| Rated output current | 227A | 75A | 150A | |
| Bypass overload distortion |
≧ 1.3 times long-term overload |
|||
| Output voltage distortion | ≦ 2% | |||
| Input current total harmonic distortion | ≦ 3% | |||
| Response time | ≦ 5ms | |||
| Switching time between main curcuit and bypass | ≦5ms | |||
| Compensation functions | Voltage tabilization, reactive power compensation, three-phase imbalance correction | |||
| Measurement accuracy | ≦ 1% | |||
| Noise | Noise ≦ 65dB at 25℃ | |||
| Environment | Operating temperature | -25℃ to + 50℃ | ||
| Relative humidity | ≦ 95% (at 40℃) | |||
| Altitude | 2000m | |||
| Protection Rating | IP 54 | |||
Main Functions of unified power quality conditioner(UPQC)
- Voltage conditioning: Rapidly suppress voltage sags and swells, stabilizes voltage fluctuations, eliminate voltage flickers, compensates voltage harmonics to ensure the load-side voltage remains within the compliant range.
- Current conditioning: Balances three-phase current, dynamically compensates reactive power, accurately filters current harmonics genertaed by the load (2nd to 13th order), reduces line losses, and improves grid power factor.
- Comprhensive protection: Equipped with multiple protection functions, including overvoltage, undervoltage, overcurrent, overheating, short circuit and phase loss protection. In the event of a fault, the device automatically switches to bypass mode to ensure uninterrupted load support and operational safety.
- Smart monitoring: Supports local and remote monitoring, with real-time acquisition of parameters such as grid voltage, current, power factor and harmonic content, while enabling fault alarms, data recording and report generation.
Conclusion
The Unified Power Quality Conditioner (UPQC) represents a significant advancement in modern power quality management. By integrating voltage compensation, harmonic filtering, and reactive power control, UPQC provides a complete solution for improving electrical system stability and efficiency.
As industries demand higher power reliability and renewable energy adoption continues to grow, UPQC technology will play an increasingly important role in building smarter, cleaner, and more reliable power networks worldwide.
