SVQR Voltage Regulated Automatic Reactive Power Compensation Device
Your Professional SVQR Voltage Regulated Automatic Reactive Power Compensation Device Supplier
Shaanxi Sefon Electrical Equipment Co., Ltd. (referred to as Sefon), established in 2009, is a high-tech enterprise integrating research and development, design, production, sales, service, and power engineering general contracting. Our company mainly produces 35kV and below oil immersed transformers, dry-type transformers, special transformers, dry-type iron core series reactors, high and low voltage switchgear, box type substations, prefabricated cabins, and power quality control products.
-

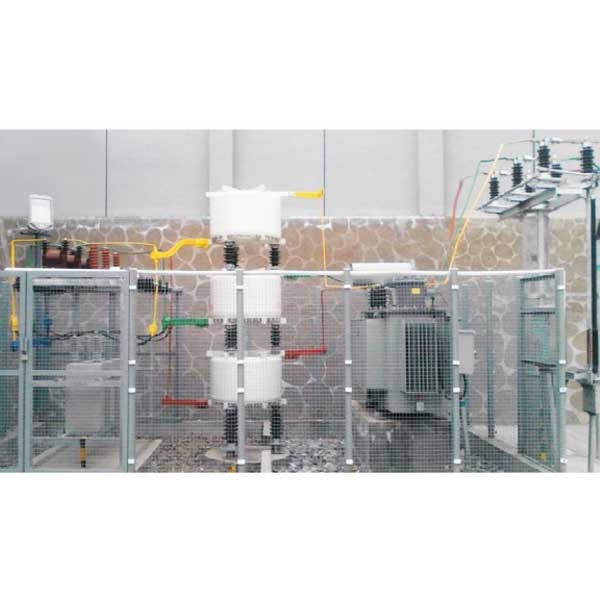

![10kV SVQR Voltage Regulated Automatic Reactive Power Compensation Device]()
10kV SVQR Voltage Regulated Automatic Reactive Power Comp...Compared with the traditional substation reactive power compensation device, the voltage-regulated reactive power automatic compensation device adopts a new technical concept, breaking through the...read more
Why Choose Us
Certification
Passed ISO9001:2008 quality management system certification, ISO14001:2015 environmental management system certification, and OHSAS18001:2007 occupational health and safety management system certification.
R&D Team
In recent years, the technology research and development team has independently developed and made significant technological progress in major products such as special power equipment and power quality equipment, based on the reference of advanced technologies at home and abroad, and has obtained more than ten national patents.
Advanced Equipment
WR horizontal winding machine; ZBR-1000 automatic cable winding machine; ZBR-1000 shearing machine; ZY-50 vacuum oil filter; HB electric hot blast constant temperature drying oven; WLJ-1200 corrugated paper board machine; SRX2600 three-dimensional iron core winding machine; DHR1400 foil winding machine; 303E-3-S busbar processing machine; ZQ4125 desktop drilling machine, etc.
Our Services
The company is fully committed to providing customers with meticulous and professional consulting services. For problems that arise during the use of products or equipment, based on user feedback, our company's after-sales service center will coordinate with them, including product installation, maintenance, and technical Q&A.
SVQR Voltage Regulated Automatic Reactive Power Compensation Device Specifications
|
Item Value |
Value |
|
Size |
1000*1500*2300 |
|
Rated voltage |
12kV, 24kV |
|
Rated current |
630A, 1250A, 1600A, 2000A, 2500A, 3150A |
|
Place of Origin |
China |
|
Model Number |
KYN28A-12 |
|
Application |
Power Distribution, Industrial, indoor, High Voltage, electric power transmission |
|
Frequency |
50Hz, 60Hz |
|
Material |
Stainless Steel, Copper, steel |
|
IP level |
Ip65 |
|
Product Name |
Low high voltage electrical switch cabinet |
|
Material |
Stainless Steel |
|
Rated voltage(KV) |
3.6, 7.2, 12 |
|
Rated current(A) |
630, 1250, 1600, 2000, 2500, 3150 |
|
Rated frequency(HZ) |
50 |
|
Color |
White |
|
Usage |
Electricity Transmission Project |
Key Features
1. Calculate the switching capacitor capacity based on the fundamental wave reactive power, which can avoid any form of switching shock, and can correctly display the power factor of the grid in the presence of harmonics;
2. High power factor measurement accuracy and wide display range;
3. Real-time display of total power factor (PF) and fundamental power factor (DPF);
4. Real-time display of voltage distortion rate and current distortion rate;
5. There are 12 kinds of encoding output methods for users to choose,
6. More than 16 outputs;
7. The man-machine interface is friendly and easy to operate;
8. Various control parameters are fully digitally adjustable, intuitive and easy to use;
9. It has two working modes: automatic operation and manual operation;
10. With over-voltage and under-voltage protection functions.
Applications
Large motor applications
An SVQR system can optimize the power factor and stabilize the voltage for these fluctuating loads.
Commercial buildings
Facilities with large HVAC systems, elevators, and other equipment with varying power demands can use an SVQR to maintain stable power quality and reduce energy costs.
Renewable energy integration
An SVQR can be used to quickly compensate for these fluctuations by injecting or absorbing reactive power, which helps stabilize the grid voltage and improves the overall integration of distributed energy resources.
Power distribution networks
Substations and transmission systems: SVQRs can be installed in substations to regulate the transmission voltage. This improves the power transfer capability and stability of the electric system, especially over long distances or in weak grid sections.
Shipping
When it’s time to ship your SVQR Voltage Regulated Automatic Reactive Power Compensation Device, you can pick your shipping service based on speed and price. If you’re looking for the cheapest way to ship a phone and you have a flexible delivery schedule, here are a few options to consider.
1. Ship to a business address using FedEx Ground, which is faster to more locations than UPS Ground.
2. Ship to a residential address with FedEx Home Delivery, which delivers every day of the week.
3. These two cost-effective options offer delivery within the contiguous U.S. in 1–5 business days (usually within 3), and to or from Alaska or Hawaii in 3–7.
Our Certificates
FAQ
We're professional svqr voltage regulated automatic reactive power compensation device manufacturers and suppliers in China, providing high quality products with low price. We warmly welcome you to wholesale cheap svqr voltage regulated automatic reactive power compensation device made in China here from our factory. Contact us for customized service.
10kV SVQR Voltage Regulated Automatic Reactive Power Compensation Device, svqr voltage regulated automatic reactive power compensation device
