Vehicle Mounted Mobile Substation

Your Professional Vehicle Mounted Mobile Substation Supplier

Our goal is to become your true partner in the field of vehicle mounted mobile substation in China. Shaanxi Sefon Electrical Equipment Co., Ltd. is a high-tech enterprise integrating research and development, design, production, sales, service, and power engineering general contracting. The company has strong technical foundation, advanced production equipment, exquisite manufacturing technology, rich project experience, and perfect service support. Our company is committed to applying advanced manufacturing technology and strict quality control standards to every product. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.

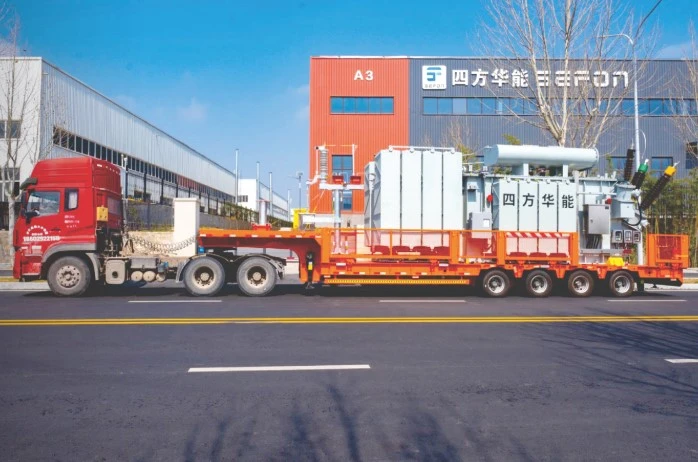

35kv series vehicle mounted mobile substation
Product Overview 35kv series vehicle-mounted mobile substation (20kv-30kv-33kv-35kv) is a combined substation equipment that integrates primary and secondary electrical equipment and a carrier...
read more

Why Choose Us

Production equipment

Our company has WR horizontal winding machine; ZBR-1000 fully automatic wire arrangement machine; ZBR-1000 shearing machine; ZY-50 vacuum oil filter and other equipment.

Our certification

Our company has passed ISO9001:2008 quality management system certification, ISO14001:2015 environmental management system certification, OHSAS18001:2007 occupational health and safety management system certification.

Production market

Our products are sold to most provinces in the country, including Heilongjiang, Shanxi, Qinghai, Xinjiang, Tibet, Sichuan, Henan, Hunan, Hubei, Yunnan, etc.

Our service

The company wholeheartedly provides customers with meticulous and professional consulting services, has professional technical personnel, follows standard specifications, clarifies customer needs, strictly controls quality plans, quantifies the implementation effects of plans, and solves customers' actual problems.

Advantages of Vehicle Mounted Mobile Substation

Rapid deployment

Designed for quick setup and dismantling, ensuring minimal downtime.

Scalability

Systems can be expanded or adapted to fit specific power requirements easily.

Cost efficiency

Reduces the need for extensive infrastructure investments in temporary power solutions.

Advanced safety systems

Equipped with various safety elements like circuit breakers and fuses to protect against electrical faults.

Compact design

Space-efficient, these vehicle mounted mobile substations can be transported easily without needing large vehicles.

Durable materials

Constructed from resilient materials that can withstand harsh environmental conditions during prolonged use.

Applications of Vehicle Mounted Mobile Substation

Power supply for remote areas: Vehicle mounted mobile substations provide a crucial solution for remote areas lacking access to a reliable power supply. These transformers are designed to be easily transported and rapidly deployed, making them a perfect fit for areas that need power but lack the infrastructure to support it.

Disaster recovery: During natural calamities, the power grid is frequently among the first systems to be affected. In these times of crisis, vehicle mounted mobile substations become lifesavers by offering a temporary power supply to regions that have lost connection to the main grid.

Temporary power supply: In many instances, a temporary remote power supply is required to meet the demands of construction projects, maintenance operations, or other temporary events. Vehicle mounted mobile substations are ideal for these applications because they can be quickly deployed to provide power where and when needed.

Construction and maintenance of a power grid: Vehicle mounted mobile substations are an essential tool. Their compact size and ability to be transported easily make them a valuable asset for constructing and maintaining the power grid.

Renewable energy: The renewable energy sector is expanding at an unprecedented pace, and vehicle mounted mobile substations are a key player in this growth. These transformers help distribute power generated from renewable sources, such as wind and solar, to locations where it is needed.

Military operations: Military operations require the ability to quickly and efficiently power critical infrastructure, which is where vehicle mounted mobile substations come in. These transformers are essential due to their mobility and versatility, which allows them to be used in various scenarios as a remote power supply.

Industrial operations: Industrial operations require a steady and reliable power source to keep production processes running smoothly. Vehicle mounted mobile substations play a crucial role in powering factories, processing plants, and other industrial facilities, providing stability and peace of mind to those working in these environments.

Specification Parameters of Vehicle Mounted Mobile Substation

Rated voltage	20kv, 30kv, 33kv, 35kv; 110kv-132kv
Output voltage	6.3kV -6.9kV -10.5kV -11.5kV -15.75kV -21kV
Rated capacity	10MVA-50MVA
Personalized customization	Can be customized according to user requirements

Features of Vehicle Mounted Mobile Substation

Vehicle-mounted mobile transformers have been verified to operate reliably in large quantities in domestic and foreign markets. The vehicle chassis uses finite element analysis for strength calculation to ensure the reliability of the upper mounted electrical equipment.

The layout of the equipment on the vehicle and the load distribution can be better combined with the vehicle to ensure the reliability of equipment transportation. It has a design that is resistant to high humidity, heavy salt spray, high temperature, and wind and sand.

35kv series vehicle mounted mobile substation

Vehicle Mounted Mobile Substation Design Options

Shell-type Construction Design	Core-type Construction Design
Rectangular windings connected in series	Concentrically cylindrical windings
Core with rectangular cross-section around the winding package	Core with circular cross-section inner to windings
Group of multiple windings connected in series, assembled, and processed together	Active parts are assembled and processed together
Form fit tank, divided into two parts	Active part installed in the tank
Core stacked around, over the bottom tank	Exits and connections on the top and bottom part
Exits and connections on top only

Customizable Vehicle Mounted Mobile Substation

Customized voltage options: This product provides customized voltage options of 480v, 400v, and 660v to cater to the specific needs of various mine sites, allowing for flexibility and adaptability.

Scalable and flexible: This product is designed to accommodate the evolving needs of mine operations, offering a scalable and flexible solution that can be easily upgraded or modified to meet changing requirements.

Packaging and Shipping of Vehicle Mounted Mobile Substation

Packing	Wooden cases for export
Shipping	Container transport, by sea.
Selling Units	Single item

FAQ

Q: What's the difference between a step-up substation and a step-down substation?

A: The main difference between a step-up and a step-down substation is the direction of the voltage change. A step-up substation increases the voltage, while a step-down substation decreases the voltage.

Q: What's the ideal voltage for a substation?

A: The ideal voltage for a substation depends on its purpose. For example, if the substation is responsible for providing power to homes and businesses, then the ideal voltage would be lower so these smaller applications can use it.

Q: How many amps can a single-phase transformer handle?

A: A single-phase transformer can typically handle up to 175 amps. However, this number can vary depending on the specific model and manufacturer of the transformer.

Q: Why are transformers so important to the electrical grid?

A: Transformers are an important part of the electrical grid because they help to regulate and adjust the voltage. They also allow for safe and efficient electricity transmission over long distances.

Q: What is the process of electrical substation?

A: An electrical substation is a facility that serves as a junction point between electricity generation and electricity distribution. It gathers electricity from various sources, such as electricity generation plants and electricity distribution networks, and then distributes it to end users across a wide area.

Q: What is the difference between a power station and a substation?

A: Generally a station is where power is generated and a substation is where it is either transformed to a higher or lower voltage for either transmission or distribution and which generally does not involve any power generation.

Q: What is the basic knowledge of substation?

A: A substation is a part of an electrical generation, transmission, and distribution system. Substations transform voltage from high to low, or the reverse, or perform any of several other important functions.

Q: How long does it take to fix a substation?

A: Fixing or replacing a transformer at a substation typically takes 2 to 4 weeks, depending on factors like transformer size, repair complexity, and part availability. Minor repairs may take a few days.

We're professional vehicle mounted mobile substation manufacturers and suppliers in China, providing high quality products with low price. We warmly welcome you to wholesale cheap vehicle mounted mobile substation made in China here from our factory. Contact us for customized service.
