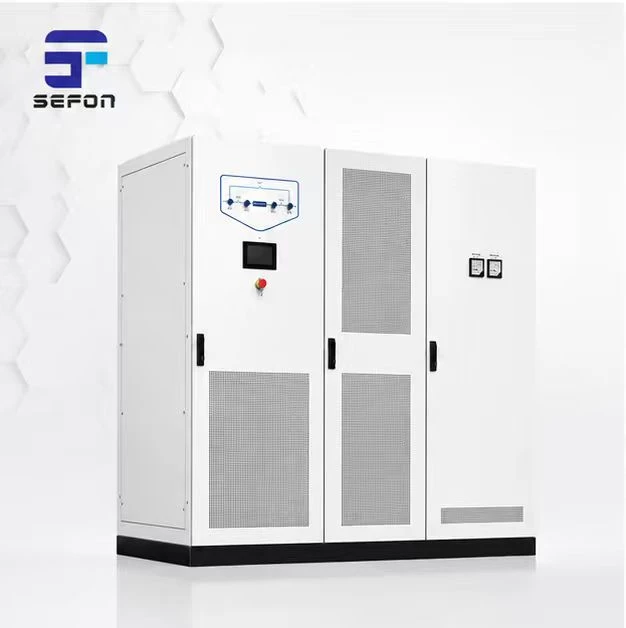

What is a Dynamic Voltage Regulator (DVR)?
With the rapid development of industrial automation, smart manufacturing and renewable energy systems, modern electrical equipment requires higher power quality and voltage stability. However, voltage disturbances such as voltage sag, voltage fluctuation and transient interruption frequently occur due to lightning strikes, grid faults, large motor starting and switching operations. A Dynamic Voltage Regulator (DVR) is an advanced power electronic device designed to improve voltage quality by detecting voltage variations in real time and injecting a compensation voltage to maintain stable output voltage for sensitive loads. A DVR system usually consists of voltage detection units, control systems, power converters, energy storage modules, injection transformers and bypass protection systems. It can respond within milliseconds and protect critical electrical equipment from voltage disturbances.
Working Principle of Dynamic Voltage Regulator
A Dynamic Voltage Regulator is connected in series between the power supply and the protected load. Under normal conditions, DVR operates in monitoring mode without affecting the power system. When voltage abnormalities are detected, the control system calculates the required compensation voltage and controls the inverter to generate the appropriate voltage. The compensation voltage is injected through the transformer and added to the original supply voltage, ensuring stable voltage for the load. Main functions include voltage sag compensation, voltage swell correction, voltage fluctuation suppression, three-phase voltage imbalance improvement, and transient voltage protection.
Key Advantages of Dynamic Voltage Regulator
- Voltage sag can cause production line shutdown, PLC restart and damage to sensitive equipment, resulting in significant economic losses. With high-speed detection and digital control technology, DVR provides millisecond-level voltage compensation and greatly reduces the impact of voltage disturbances.
- DVR not only compensates voltage sag but also improves overall power quality. It is widely used for semiconductor manufacturing equipment, CNC machines, medical equipment, data centers, and automated production systems. Stable voltage supply improves equipment efficiency and extends service life.
- Compared with traditional UPS systems, DVR focuses specifically on voltage quality problems and requires less energy storage capacity. It offers advantages such as smaller footprint, higher efficiency, and lower maintenance cost. Installing DVR helps industrial users reduce downtime and improve production continuity.
Applications of Dynamic Voltage Regulator
- Manufacturing Industry: Modern factories rely heavily on automated equipment requiring stable voltage. DVR protects: robotic production lines, control systems, and precision manufacturing equipment.
- Renewable Energy Projects: Solar, wind and energy storage systems are sensitive to grid fluctuations. DVR improves grid connection stability and power quality.
- Data Centers: Data centers require continuous and reliable power supply. DVR reduces risks of server failure and data loss caused by voltage disturbances.
Why Choose a Professional DVR Manufacturer?
Choosing a reliable DVR manufacturer requires more than checking technical specifications. Engineering capability, project experience and after-sales support are equally important. A high-quality Dynamic Voltage Regulator should provide fast dynamic compensation, intelligent control system, high-efficiency power conversion, comprehensive protection functions, and customized voltage solutions. Professional manufacturers can provide tailored DVR solutions according to grid standards, load characteristics and operating environments.
Conclusion
Dynamic Voltage Regulator (DVR) is an essential solution for improving voltage stability in modern industrial power systems. With fast response, efficient compensation and intelligent control features, DVR improves power quality, reduces equipment downtime and ensures reliable operation of critical systems. For industrial users, renewable energy projects and smart manufacturing facilities requiring high-quality power supply, DVR provides a reliable and cost-effective power quality solution.
