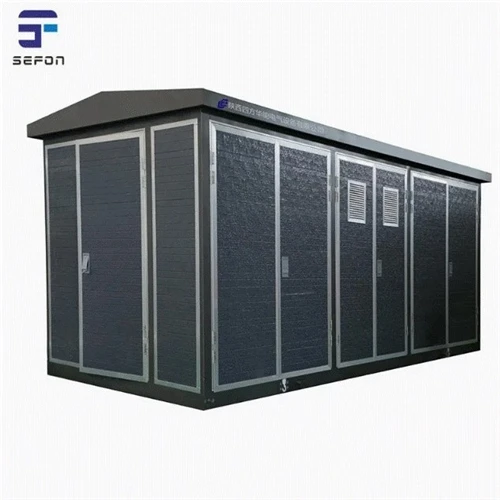

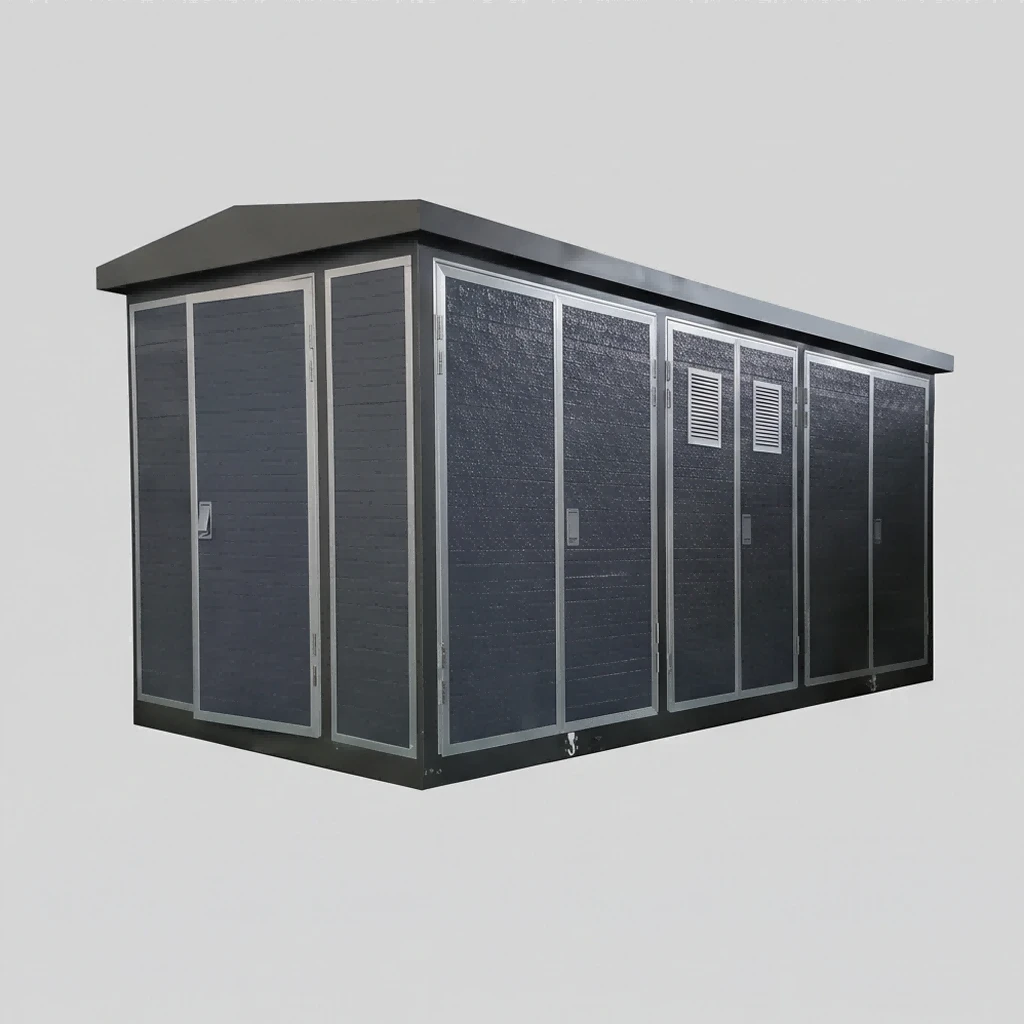

What Is a Compact Substation?
A compact substation, also known as a box-type substation, is a fully prefabricated, modular outdoor power distribution device integrating high-voltage switchgear, power transformer, low-voltage distribution equipment, and intelligent protection systems. Unlike traditional on-site assembled substations that require lengthy civil construction and field wiring, compact substations are completely assembled, wired, tested, and debugged in the factory. They feature a compact structure, standardized design, and plug-and-play installation, making them the mainstream power distribution equipment for modern infrastructure, new energy projects, and industrial and civil power supply worldwide.
Core Advantages of Compact Substation
Compact substations stand out in the global power equipment market due to their unique comprehensive advantages, solving multiple pain points of traditional power distribution solutions. First, they save space and construction costs. The integrated modular design occupies only 1/3 of the land area of conventional substations, eliminating the need for large-scale civil engineering, greatly reducing project investment and site occupation. Second, the installation cycle is extremely short. Factory prefabrication shortens on-site construction time from several months to 3–7 days, effectively accelerating project delivery.
In addition, modern compact substations adopt fully sealed and insulated designs, with excellent rainproof, dustproof, anti-corrosion and lightning protection performance, adapting to harsh environments such as high temperature, low temperature, humidity, and sandstorms in different regions of the world. Equipped with intelligent monitoring, overload protection and short-circuit protection systems, they realize automatic fault alarm and safe power-off, ensuring stable and safe long-term operation. Moreover, the equipment features low maintenance cost and strong flexibility, supporting mobile reuse and capacity expansion, which is highly suitable for temporary projects and long-term iterative engineering.
Main Application Scenarios
Compact substations are widely used in global civil, industrial, new energy and infrastructure fields. In the new energy industry, they serve as key power collection and boosting equipment for photovoltaic power stations and wind farms, efficiently converting and transmitting new energy power to the grid. In urban construction, they are applied in residential communities, commercial plazas, and municipal road lighting projects, providing stable civil power supply. For industrial engineering, they are suitable for industrial parks, mining, oil and gas field projects to meet continuous industrial power demand. In addition, they are the preferred power supply equipment for highway, railway, airport infrastructure and temporary construction projects.
Why Choose Our Compact Substation?
As a professional compact substation manufacturer focusing on global foreign trade, we provide standardized and customized box-type substations that comply with international IEC, EU CE and other global certification standards. All products undergo strict factory testing to ensure high safety, stability and durability. We support personalized customization of voltage level, capacity, shell material and intelligent functions according to customer project needs, covering all mainstream power distribution specifications for European, Russian, Southeast Asian, African and Middle Eastern markets. With mature overseas project experience, we provide one-stop services including design, production, transportation, installation guidance and after-sales maintenance, helping global customers reduce project costs and improve engineering efficiency.
