With the rapid development of industrial automation, smart manufacturing, and digital infrastructure, electrical equipment has become increasingly sensitive to voltage disturbances. Problems such as voltage sags, voltage swells, and sudden fluctuations can cause equipment failures, production interruptions, and significant economic losses. To address these challenges, the dynamic voltage regulator (DVR) has emerged as an advanced power quality management solution. By providing fast and precise voltage compensation, DVR technology helps maintain stable power supply conditions and protects critical electrical loads from unexpected voltage disturbances. As industries continue to demand higher power reliability, Dynamic Voltage Regulators are becoming an essential component in modern power systems, supporting stable operation across manufacturing, renewable energy, data centers, and other critical applications.
What Is the Dynamic Voltage Regulator (DVR)?

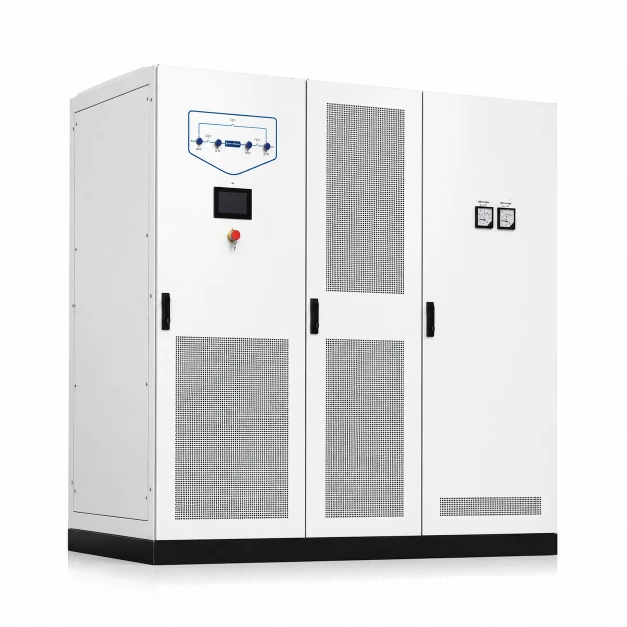

A dynamic voltage regulator(DVR) is a series-connected active quality designed to address millisecond-level voltage sags, swells and short-duration interruptions. It is widely used in industries with stringent power quality requirements, including semiconductor manufacturing, healthcare facilities and data centers. By monitoring grid fluctuations in real time, it rapidly injects compensating voltage to stabilize load-size voltage and prevent losses such as equipment shutdowns and data loss, Integrating power electronics and energy storage technologies, it offers energy efficiency, maintenance-free operation, a high localization and cost-effectiveness, while supporting customized solutions.
Structure and working principle of the dynamic voltage regulator(DVR)
The dynamic voltage regulator(DVR) adopts a modular design, with five core modules working in coordination to ensure compensation accruracy and fast response:
- Detection and control module: using FPGA and DSP, this module performs high-speed sampling of grid parameters, rapidly detects abnormalities and issues control commands. It also features a built-in CMS management system to protect energy storage components.
- Energy storage module: uses supercapacitors that offer up to one million charge-discharge cycles, a maintenance-free service life of up to 20 years, adjustable compensation time from 1 to 6 seconds, and does not cause harmonic pollution.
- Inverter module: fourth-generation IGBT technology is used to convert DC power into AC compensating voltage with the same frequency and phase. It supports compensation even under extreme voltage drops.
- Series transformer module: features an isolated design that injects compensating voltage into the grid to enable superposition while ensuring equipment safety.
Bypass and protection module: combines a dual electronic and mechanical bypass system with efficiency exceeding 99%. It integrates multiple protection functions to ensure continuous power supply to the load during faults.
The DVR operates using closed-loop control and fully automatic functionality. Under normal conditions, it monitors the grid and supplies power through the electronic bypass. When a grid abnormality is detected, it rapidly activates the energy storage and inverter module to inject compensating voltage into the circuit through the series transformer to stabilize the load voltage. Once the grid returns to normal, the DVR automatically resumes standard operation. In the event of a fault, it switches to bypass mode to ensure uninterrupted power supply.
Features of the dynamic voltage regulator(DVR)
- Fast response: detection response ≤ 50㎲, total compensation time ≤ 2ms, ensuring seamless handling of voltage disturbances. Suitable for sensitive equipment.
- Precise compensation: covers various voltage abnormalities with compensation accuracy ≤ ±1% and output harmonic distortion < 2.5% for stable voltage.
- Reliable energy storage: supercapacitors are maintenance-free with a long service life, adjustable compensation time, and environmentally friendly operation.
- High efficiency and energy saving: bypass efficiency ≥ 99% and low consumption, significantly lowering capital and electricity costs compared with UPS.
- Safe and stable: multiple redundancy design, high localization of core components, multiple protection functions and adapts to harsh industrial environments.
- Smart and flexible: visualized operation, multiple communication methods, modular expandability, can adapt to various voltage levels and capacity requirements, with support for customization.
Technical Parameters of the dynamic voltage regulator(DVR)
The following are standard model parameters and can be customized:
| Name | Standard Parameters | |
| Rated Voltage | 400V | 6kV~35kV |
| Rated Capacity | 100kVA~1000kVA | 1M~10MVA |
| Input Voltage Range | -20%~+20% | |
| Grid Frequency | 50/60Hz (45Hz~65Hz) | |
| Compensation Capability | Compensates residual voltage from 0 to 130% to rated voltage; standard models supports 3s to 30s | |
| Total Response Time | < 5ms | |
| Wiring Mode | Three-phase three-wire + PE/three-phase four-wire + PE | |
| Overall Efficiency | ≥ 98% | |
| Operating Temperature | -25℃ to +45℃ | |
| Service Life | Maintenance-free service life of up to 20 years | |
Conclusion
The dynamic voltage regulator (DVR) is an advanced power quality solution designed to overcome voltage instability challenges in modern electrical systems. Through rapid voltage compensation, intelligent control, and reliable protection capabilities, DVR technology helps industries and utilities achieve safer and more efficient power operation. As global power networks continue to become more digital and complex, Dynamic Voltage Regulators will play an increasingly important role in ensuring stable electricity supply and supporting the future development of smart energy systems.
