As cities expand, industries develop, and renewable energy projects accelerate worldwide, the demand for efficient and flexible power distribution solutions continues to grow. Tranditional substations often require large installation areas, complex construction processes, and long commissioning periods, creating challenges for projects with limited space or urgent power requirements.
The compact substation has become an adanced solution for modern electrical networks by integrating transformers, high-voltage switchgear, low-voltage distribution equipment, and intelligent control systems into a compact and factory-assembled unit. With its advantages of small foot-prints, quick installation, and reliable operation, compact substations are playing and increasingly role in global power infrastructure development.
What is a compact substation

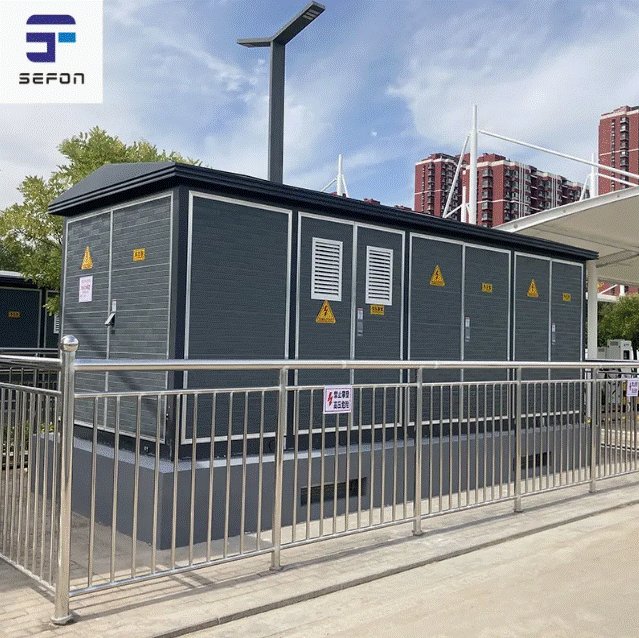

YBM-40.5(12) series prefabricated packaged substation (hereinafter referred to as the packaged substation) is a complete prefabricated power distribution device in which high-voltage distribution equipment, a transformer, and low-voltage distribution equipment are assembled according to a specific wiring design. It is used in 40.5(12)/0.4kV or 40.5/12kV three-phase AC systems as an integrated transformer and distribution device for receiving and distributing electric power.
The YBM-40.5(12) packaged substation is an outdoor product that does not occupy building floor area, saves contruction costs, and offers a small sites, light weight, attractive appearance, compact structure, and flexible, convenient installation. It fully meets the requirements of IEC 1330 and is suitable for urban public power distribution, street lighting power supplies, industrial and mining enterprises, high-rise buildings, residential communities, oilfields, wharves, and construction sites.
Features of compact substation
- This product consists of high-voltage distribution equipment, a transformer, and low-voltage distribution equipment, and is divided into three functional compartments, namely the high-voltage compartment, the transformer compartment, and the low-voltage compartment. The high-voltage compartment comes with a variety of features and can be arranged for ring network supply, terminal supply, dual-power supply, and other power supply configurations. High-voltage metering components may also be installed to meet requirements for high-voltage metering.
- The transformer may be selected as either a low-loss oil-immersed transformer or a dry-type transformer. The transformer compartment features an automatic forced-air cooling system and a lighting system.
- The low-voltage compartment may, depending on user's requirements, adopt either a panel-mounted or cabinet-mounted structure to form the required power supply design, with functions such as power distribution, lighting distribution, reactive power compensation, and electric energy metering built in, so as to meet differernt user's needs, facilitate power supply management, and improve power supply quality.
- The high-voltage compartment has a compact structure with full interlocking misoperation prevention functions. Each compartment features both automatic and forced lighting device. In addition, all components selected for the high-voltage and low-voltage compartments are reliable in performance and easy to operate, ensuring safe and reliable product operation as well as convenient O&M.
- Both natural ventilation and forced ventilation are used to ensure good ventilition and cooling. Both the transformer compartment and low-voltage compartment are provided with ventilation ducts, and the exhaust fans features with temperature detection devices for automatic start and stop depending on the preset temperature, ensuring that the transformer can operate under load requirements.
- The enclosure structure prevents rainwater and dirt from entering, and is made of hot-dip galvanized color-coated steel plate or corrosion-resistant aluminum alloy plate, with anti-corrosion treatment applied. It is suitable for long-term outdoor use, ensuring corrosion resistance, waterproofing, and dustproof performance, with long service life and attractive appearance.
Main parameters of compact substation
| European-type substaion | Type | Unit | Parameters | |
| Rated Voltage(Un) | High-voltage main circuit | kV | 10 | |
| Low-voltage main circuit | 0.4/0.22 | |||
| Thermal withstand current | High-voltage main circuit | kA | 20 | |
| Low-voltage main circuit | Note 1 | |||
| Dynamic withstand current | High-voltage main circuit | kA | 50 | |
| Low-voltage main circuit | kA | 105 | ||
| 1 min power frequency withstand voltage | High-voltage main circuit | kV | 42(switchgear), 35(transformer) | |
| Low-voltage main circuit | kV | 2.5 | ||
| 3s | Auxiliary circuit | kV | 2 | |
| Capacity | kVA | |||
| Configuration type | Pin-shaped or Mu-shaped | |||
| Protection rating | IP 33D | |||
| Noise level | dB |
≤ 45dB |
||
Future Development Trends of Compact Substations
With the advancement of digital power systems, compact substations are evolving toward smarter, safer, and more environmentally friendly solutions.
Future trends include:
- Integration of intelligent sensors and Io T technology
- Improved energy efficiency
- Modular and customizable designs
- Enhanced remote operation capabilities
As global electricity demand continues to increase, compact substations will become a key component in building flexible and sustainable power distribution networks.
Conclusion
The compact substation provides an efficient, reliable, and space-saving solution for modern power distribution challenges. By integrating multiple electrical components into a single prefabricated system, it offers significant advantages in installation speed, cost control, operational reliability, and intelligent management.
From urban development and industrial expansion to renewable energy integration, compact substations are helping create smarter and more efficient electrical infrastructure worldwide.
