As global energy demand continues to rise and power infrastructure projects become increasingly complex, traditional substation construction methods are facing challenges such as long construction cycles, high investment costs, and complicated on-site installation processes. The Prefabricated Substation has emerged as an innovative solution that meets the growing demand for faster, smarter, and more flexible power distribution systems. By integrating electrical equipment into a factory-assembled modular structure, prefabricated substations provide a reliable alternative for utilities, industries, renewable energy developers, and infrastructure projects worldwide. With advantages including rapid deployment, compact design, improved safety, and reduced construction requirements, prefabricated substations are becoming an important part of modern power grid development.
What Is a Prefabricated Substation?

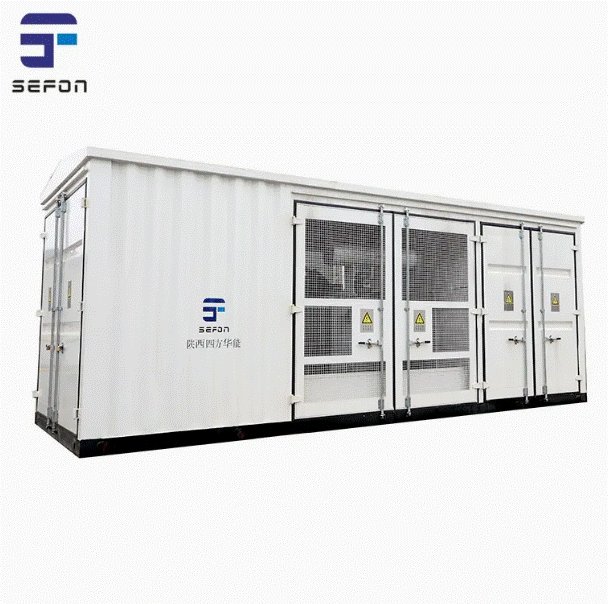

The YBM-12 series high-voltage and low-voltage prefabricated substation is a new type of distribution equipment that offers the most economical, convenient, and efficient solution for modern power distribution systems. It integrates a 12kV high-voltage switchgear, transformer, and low-voltage switchgear into a single unit, forming a mobile substation that is completely assembled and manufactured in the factory. By utilizing advanced modern electronic technology, sensor technology, communication technology, and computer network technology, this product integrates the functions of monitoring, protection, control, power measurement, and communication for power equipment under both normal operating conditions and fault conditions. It enables efficient operation and intelligent management, fully meeting the requirements for compact design and unattended operation of prefabricated substations. The YBM-12 series effectively solves the challenges faced by traditional power distribution stations, such as the inability to achieve centralized management and automated operational procedures, providing a more intelligent, reliable, and efficient solution for modern power distribution networks.
The YBM-12 series high-voltage/low-voltage prefabricated substation combines the advantages of American-style compact substation, European-style compact substations, and domestic prefabricated substations. Designed to meet the specific requirements of China's power distribution conditions, it adopts new materials, advanced manufacturing processes, high-performance components, and modern high-voltage/low-voltage automation technologies. The high-voltage side (12kV) meets the requirements of power utilities for distribution network automation, while the low-voltage side (0.4kV) satisfies the needs of intelligent property management systems in residential communities. Through the host computer system at the central station or property management center, the prefabricated substation can realize four remote functions: remote measurement, remote control, remote signaling, and remote adjustment. When the intelligent high-voltage/low-voltage prefabricated substation is integrated into a "hand-in-hand" (ring-connected) power supply network, it can, with the support of dedicated software, automatically perform functions such as fault section location, fault isolation, load transfer, and network reconfiguration. These capabilities significantly improve the reliability of power supply and ensure that power can be restored within a short period of time after a fault occurs.
advantages of a prefabricated substation
The YBM-12 series high-voltage/low-voltage prefabricated substation features a high level of integration, compact size, and a streamlined structure. It requires less installation space and can be installed closer to load centers, thereby improving power supply quality, reducing line losses, and shortening the power delivery cycle. With flexible site selection and strong adaptability to different environmental conditions, the substation is easy to operate and maintain, ensuring safe and reliable operation. In addition, it offers a high level of intelligence, lower investment costs, and faster return on investment, making it an efficient and advanced solution for modern power distribution systems.
applications of a prefabricated substation
The YBM-12 series prefabricated substation is widely used in urban public power distribution systems, high-rise buildings, urban and rural construction projects, residential communities, high-tech development zones, parks, and expressways. It is also suitable for small and medium-sized power plants, oil fields, industrial and mining enterprises, and temporary power supply applications.
Operating Conditions of YBM-12 Series Prefabricated Substation
- Installation location: Outdoor installation
- Altitude: Not higher than 2000 m above sea level
- Ambient temperature: Maximum temperature: +40℃;Minimum temperature: -25℃
- Relative humidity: Daily average: ≤ 95%;Monthly average: ≤ 90%
- Outdoor wind speed: Not exceeding 35 m/s
- Installation environment: The installation site shall be free from conductive dust, explosive substances, corrosive gases, and corrosive dust.
- Installation requirements: The installation site shall be free from severe vibration and mechanical impact. The vertical inclination of the installation shall not exceed 5°, and the earthquake intensity shall not exceed 8 degrees.
Conclusion
The Prefabricated Substation represents a major advancement in modern electrical infrastructure by combining modular design, fast installation, and reliable performance. It provides utilities and industries with a flexible solution for expanding power networks while reducing construction complexity and costs. As global electricity demand increases and renewable energy development accelerates, prefabricated substations will continue to play a critical role in building smarter, more efficient, and more resilient power distribution systems worldwide.
