Product Overview

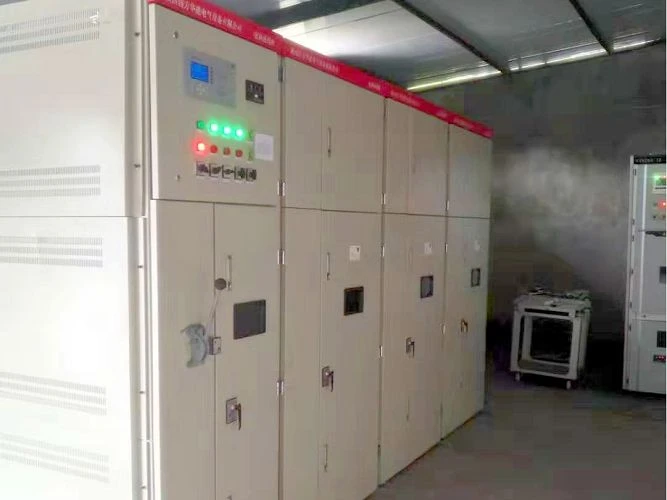

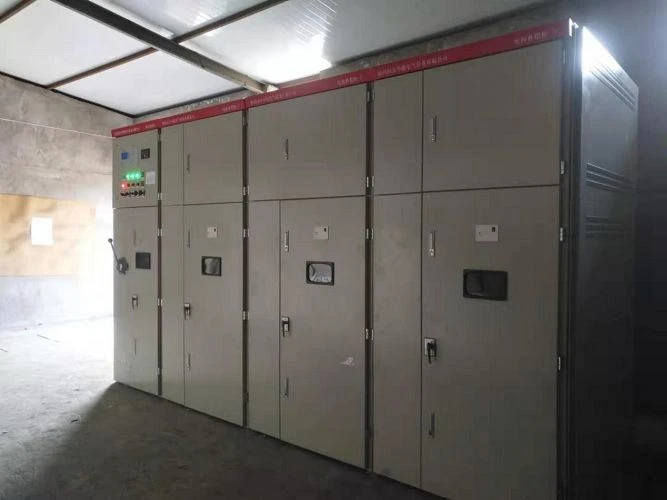

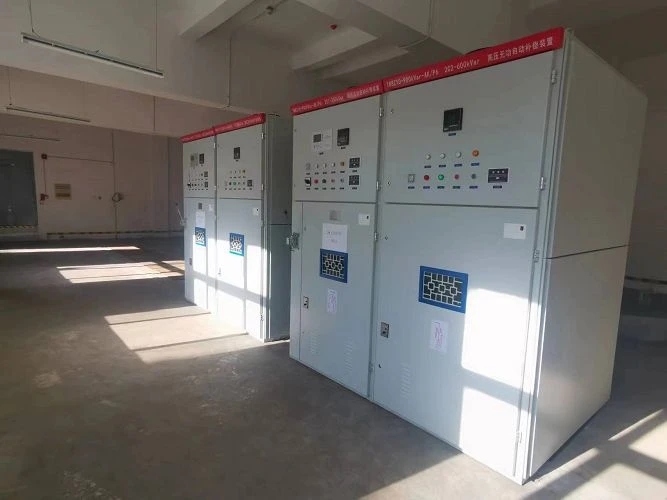

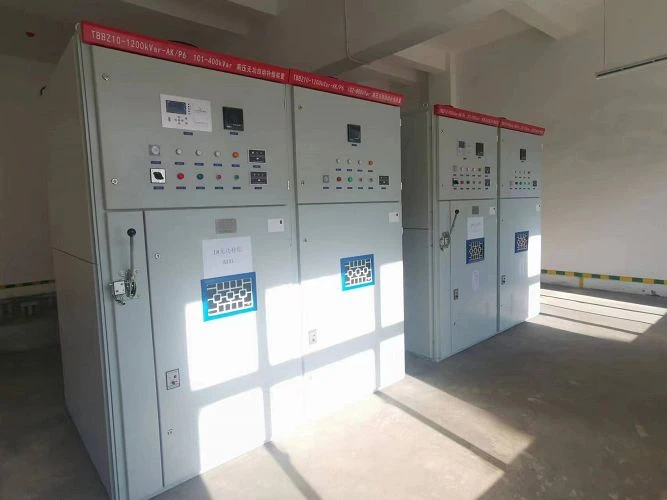

TBB type high voltage automatic reactive power compensation device (hereinafter referred to as the device) is mainly used for the reactive power automatic compensation device of 10kV busbar of 35kV or 110kV substation. According to the change of reactive power of substation busbar, it automatically controls the switching of capacitor bank to improve the power factor in substation. The product is divided into indoor installation and outdoor installation.

Working principle

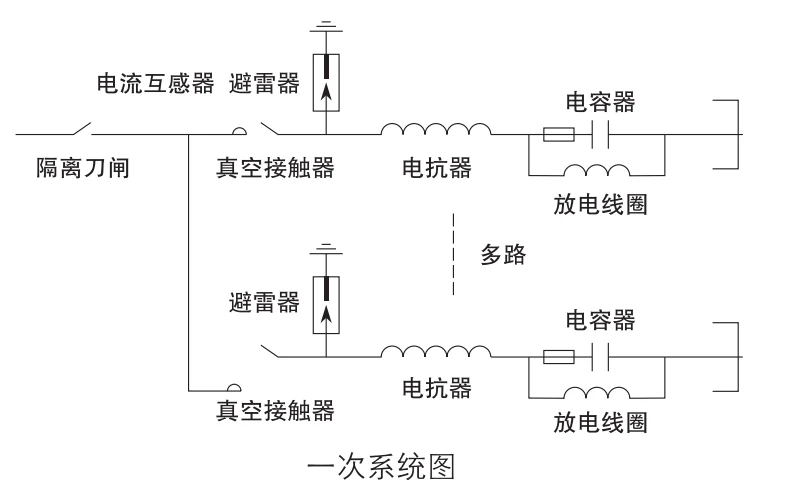

product-799-500

The device is mainly composed of isolating switch, vacuum contactor, protective current transformer, spray fuse, high-voltage shunt capacitor, dry iron core reactor, discharge coil, lightning arrester, shell, control system and other components. Working principle: The control system calculates and processes the real-time voltage and current of the substation, and the controller issues a switch-on or switch-off instruction to control the opening and closing action of the vacuum contactor, thereby realizing the switching of the capacitor.

Main parameters

Altitude	Altitude is not higher than 2000m (special requirements must be specified when ordering)
Ambient temperature	-25℃~ +45℃ (special requirements must be specified when ordering)
Ambient humidity	<90% at 25℃
Rated frequency	50Hz
Installation environment	No severe mechanical vibration that affects the insulation performance of the device, no harmful gases and steam, no conductive or explosive dust
Voltage level	6kv, 10kV or 35kV
Rated capacity	Select according to user needs
Switching mode	Isocapacitive cycle, unequal capacity combination
Control mode	Voltage reactive control, reactive control, voltage control, time control, voltage time control
Protection function	With overcurrent, quick break, overvoltage, undervoltage, 10min, unbalanced current, zero sequence voltage and other protections
Display function	Use large screen LCD to display various real-time data and fault information, which can be modified and customized online with keyboard
Recording function	Three types of record storage functions, including switching records, protection records, and statistical records
Communication mode	With standard RS485 communication interface, support ModBuS, CDT, IEC101 communication protocols

Performance characteristics

● Equipped with high-voltage compensation, the power factor and system voltage are controlled within the set range by automatically tracking the switching capacitor.
● Through the remote automatic selection switch, various compensation working modes can be flexibly selected.
● The voltage, current, power factor, reactive power, capacitor switching status and alarm protection information on the low-voltage side of the main transformer can be displayed in real time.
●It has a standard RS485 communication interface, supports Modbus, CDTIEC101 communication protocol, and cooperates with the substation integrated automation system to realize the "four remote" function.
●The vacuum contactor is used to switch the capacitor bank, which has the advantages of small size, good arc extinguishing performance, long life, low maintenance and safe use. It is particularly suitable for frequent breaking of capacitive current.
●Flexible grouping according to the total compensation capacity, up to 8 groups with equal capacity, and the maximum capacity of each group is 1800kvar. Automatic cycle switching, first switch first switch, to ensure that each capacitor bank is used at the same time, and the same capacitor bank is not put into use again within a time less than the discharge time.
●Configure the capacitor bank microcomputer protection device to realize the two-stage overcurrent and zero-sequence voltage protection function. When a group fails, it can be automatically cut off and locked without affecting the normal switching of other capacitor banks.
●Configure reactors with different ratios to limit the closing surge current and suppress high-order harmonics.
